StrongSwan VPN Verification Guide

This guide helps you verify that a site-to-site IPsec VPN tunnel using StrongSwan has been successfully established between virtual machines provisioned via Terraform and configured with cloud-init.

Hosts Overview

The tunnel uses IKEv2 with a Pre-Shared Key (PSK) and is automatically established at boot.

Host	IP Address	Role
appliance01	10.1.1.10	Cloud VPN Appliance
machine01	10.1.1.11	Cloud Internal Machine
appliance02	11.2.2.10	On-Prem VPN Appliance

---

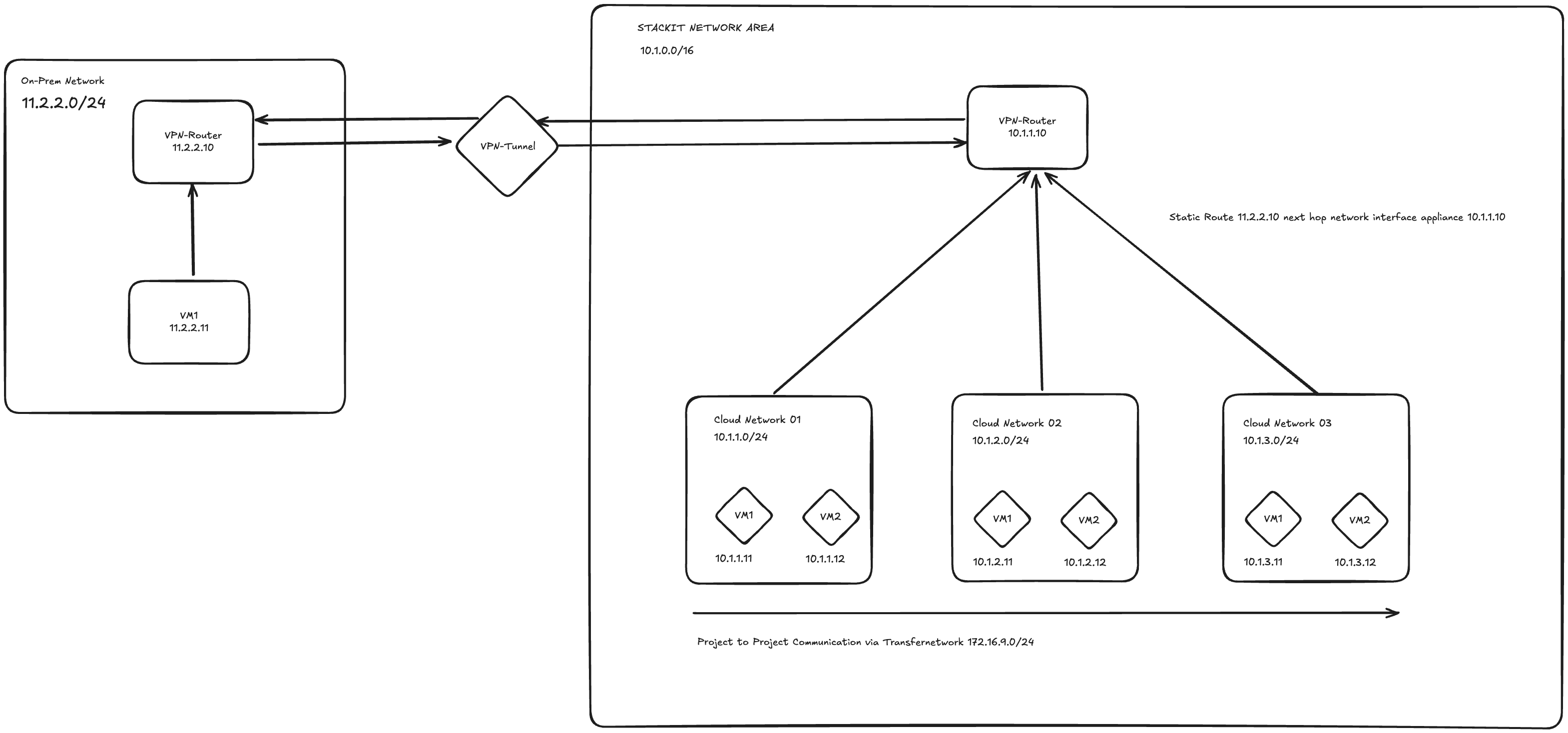

🔧 Architecture

---

1. Check StrongSwan Service Status

SSH into each machine using its public IP:

ssh -i ~/.ssh/id_rsa debian@<machine-public-ip>

Once logged in, verify the StrongSwan service:

sudo ipsec statusall

Expected output should resemble:

Status of IKE charon daemon (strongSwan 5.9.8, Linux ...):
  uptime: ...
  worker threads: ...
Connections:
     net-net:  10.1.1.10...11.2.2.10  IKEv2, dpddelay=30s
     net-net:   local:  [10.1.1.10] uses pre-shared key authentication
     net-net:   remote: [11.2.2.10] uses pre-shared key authentication
     net-net:   child:  10.1.1.0/24 === 11.2.2.0/24 TUNNEL
Security Associations (SAs) (0 up, 0 connecting):
  none

This output confirms the configuration is loaded, but the tunnel may not yet be active.

---

2. Manually Bring Up the VPN Tunnel (Optional)

If the tunnel didn’t start automatically, initiate it manually from either VPN appliance:

sudo ipsec up net-net

Then re-check the connection:

sudo ipsec statusall

You should now see an established connection:

Connections:
     net-net[1]: ESTABLISHED 15s ago, 10.1.1.10...11.2.2.10
     net-net{1}:  INSTALLED, TUNNEL, ESP SPIs: ...
     net-net{1}:  10.1.1.0/24 === 11.2.2.0/24

Key indicators:

• ESTABLISHED: Tunnel is active
• Subnet-to-subnet routing: 10.1.1.0/24===11.2.2.0/24

---

3. Verify VPN-Backed Network Connectivity

Ping between hosts to validate that routing is working through the VPN tunnel:

💻 From appliance01 (cloud) to appliance02 (on-prem)

ping 11.2.2.10
# ✅ Successful ping confirms VPN tunnel works

💻 From appliance02 (on-prem) to appliance01 (cloud)

ping 10.1.1.10
# ✅ Confirms bidirectional connectivity

💻 From machine01 (cloud internal) to appliance02 (on-prem)

ping 11.2.2.10
# ✅ Tests routing through VPN appliance (appliance01)

💻 From appliance02 (on-prem) to machine01 (cloud internal)

ping 10.1.1.11
# ✅ Tests project-project routing via SNA transfer network

❌ From machine01 (cloud) to appliance02 (VPN-disconnected)

If you remove the static route that directs 11.2.2.0/24 through appliance01:

ping 11.2.2.10
# ❌ Should fail, indicating that VPN appliance is required for routing

All success cases confirm correct tunnel and routing setup. Failures (when expected) validate routing dependency on the VPN stack.
