🌐 Infrastructure Deployment: Two SNAs with two Firewalls for showing VPN IPSEC Connections

This repository contains Terraform code to deploy the following sna/infrastructure projects:

---

📦 Projects Overview

1. ALPHA SNA

1.1 Landing Zone

• Deploys a single pfSense VM as the central firewall/router.
• Acts as the entry point for the environment.
• Configures WAN and one LAN network:
  • wan_network: 10.220.0.0/24
  • lan_network1: 10.220.1.0/24
• Interfaces:
  • WAN interface with static IP 10.220.0.254
  • LAN interfaces with dynamic IP

1.2 Core

• Deploys a single Virtual Machine (VM) for core services or testing purposes.
• Network setup includes:
  • p2_lan_network: 10.220.5.0/24 (routed)
  • p2_wan_network: 10.220.50.0/24 (routed) - optional and deactivated
• Interfaces:
  • LAN interface with optional configured security group
  • WAN interface without additional security set

1.3 Backup

• Used for backup and disaster recovery scenarios.
• Creates an Object Storage Bucket.
• Relevant access credentials are provisioned for use with other services.

1.4 SKE

• Deploys a managed SKE (STACKIT Kubernetes Engine) cluster.
  • ske_network: 10.220.10.0/24

2. BETA SNA

2.1 VPN

• Deploys a single pfSense VM as the central firewall/router.
• Acts as the entry point for the environment.
• Configures WAN and one LAN network:
  • wan_network: 10.230.0.0/24
  • lan_network1: 10.230.1.0/24
• Interfaces:
  • WAN interface with static IP 10.230.0.254
  • LAN interfaces with dynamic IP

2.2 Infra

• Deploys a single Virtual Machine (VM) for infra services or testing purposes.
• Network setup includes:
  • p6_lan_network: 10.230.5.0/24 (routed)
• Interfaces:
  • LAN interface with optional configured security group and dynamic IP.

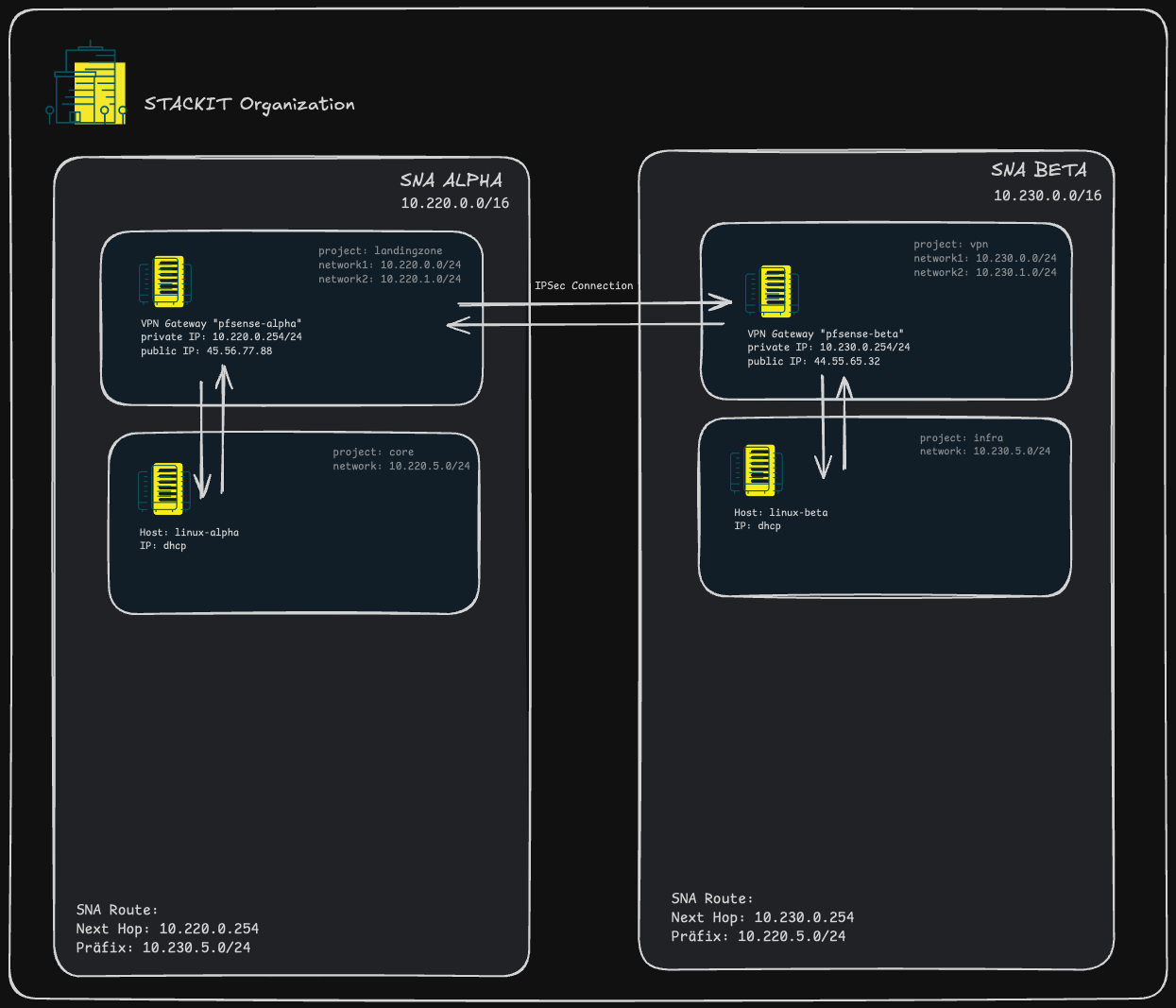

Overview

• The Project Backup and SKE is not shown in this picture. This will only show the flow of the connecting Networks via IPSec.

---

🚀 Getting Started

Prerequisites

• Terraform ≥ 1.3
• Valid STACKIT credentials
• Access to STACKIT APIs (IaaS, Kubernetes, Object Storage)

Deployment Steps

1. Clone this repository:

   git clone https://professional-service.git.onstackit.cloud/professional-service-best-practices/landingzone_ipsec.git
   cd <repo-name>


2. Initialize Terraform:

   terraform init


3. Review and adjust variables if needed:

   99-variables.tf
   set organization id (also in project module)
   touch pfsense.qcow2


4. Plan and apply the configuration:

   terraform apply


---

🔐 Output

The deployment will output:

• VM IP addresses
• pfSense Public IPs
• Kubernetes cluster information (kubeconfig)
• Object Storage credentials (access/secret key)

🔒 Make sure to store credentials securely and never commit them to version control.

---

📝 Notes

• This setup is optimized for a test or POC environment and is intended to setup an IPSEC Site2Site VPN.
• Check the SNA Routes for configuring the Remote Networks on pfSense side. Be sure to set the Identifier in IKE Phase 1 to the Public IP, because we are behind NAT.
• pfSense must be manually configured after deployment. (User: admin, Passwort: STACKIT123!)
• Kubernetes workloads are not included in this deployment but can be added later.
• LVM striping (RAID0) can be used for temporary IOPS/performance improvement — but requires attention to backups.

---

⚠️ Limitations

• The infrastructure is not auto-scaled or HA-enabled by default.
• No automated DNS or certificate management is configured.

---

📬 Support

For issues, please create a Ticket or contact professional-service@stackit.cloud

---

Author: Michael Sodan
License: MIT
